Two series in the same graph

[robinsonky]

I want to show this year and next year sales by week in the same graph with this year overlaid on last year. Obviously I can make a temporary table with the two sets of data, but is there a comparative like this built in

[Bob Cergol]

Dave,

All of the charts can only plot the actual totals that appear in your report -- either the series or the grand totals -- from either the X or Y axis.

Maybe what you want to do is create a comparison report. For example create a filter on the year part of the order date and set the filter type to one of the "compare" choices. Then group the report on the week part of the order date, etc. The resulting report will show the year-over-year totals by week and the difference. You can then chart the difference in the year-over-year total(s).

bob

[robinsonky]

pretty sure I don't understand you....
I may be asking the wrong question. I'll try what you suggest and come back with a better example.

[Mikkel Jensen]

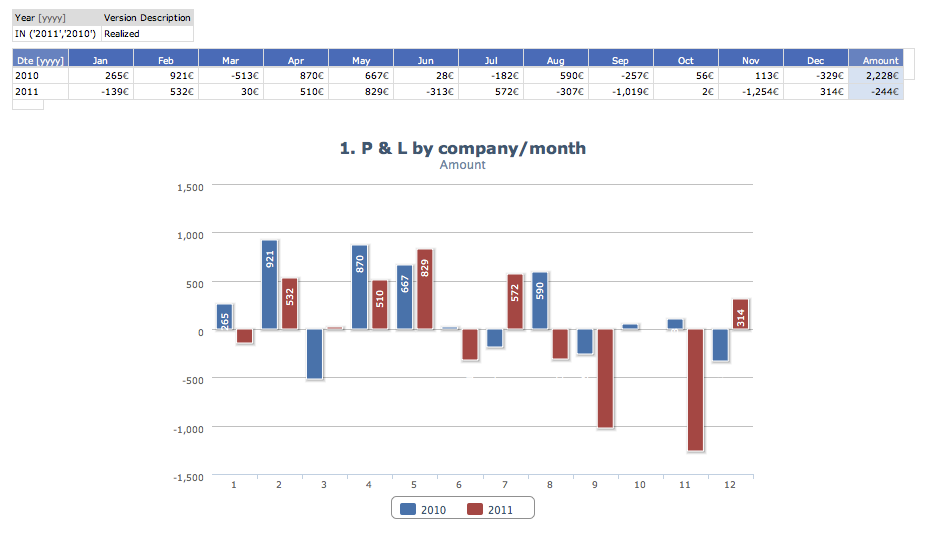

Below example is a graph showing month comparison between 2 years. Is that what you are looking for (with weeks instead of months) ?

HC Column, X-axis=Columns series=rows

Screen shot 2012-03-15 at 10.32.26.png (46.76 KiB) Viewed 75446 times

/Mikkel

[Mikkel Jensen]

Accumulated and as an area it will look like:

HC Area

Screen shot 2012-03-15 at 10.44.53.png (38.7 KiB) Viewed 75446 times

[Bob Cergol]

Dave,

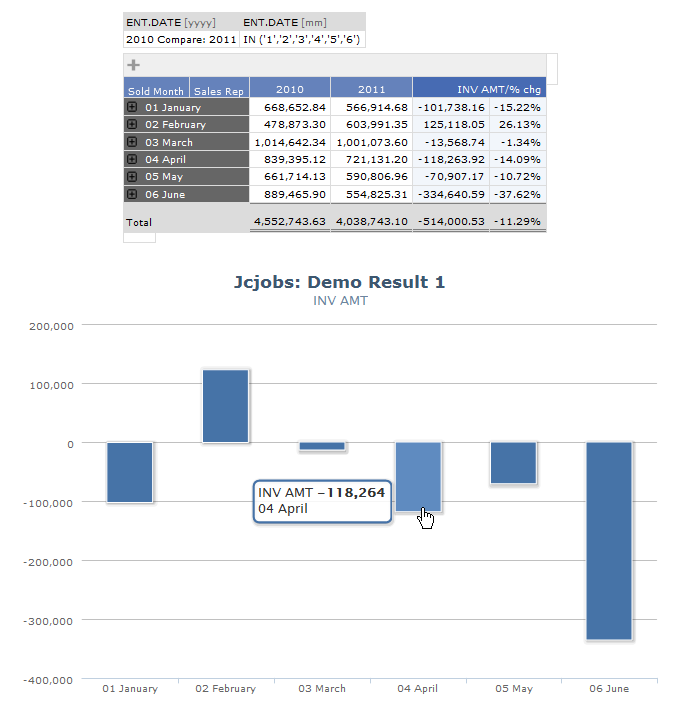

I think Mikkel's example is what you really wanted, but for comparison, here's an example of the comparison type report I mentioned. This is done by grouping on Month and filtering on year -- setting the filter type to "compare %".

Bob


[robinsonky]

Accumulated and as an area it will look like:

Screen shot 2012-03-15 at 10.44.53.png

that's probably the most like the existing Excel chart, though they use line graphs.

[Mikkel Jensen]

Try HC Line

[robinsonky]

Try HC Line

Yup, Thanks, found it in the online demo (which I had completely forgotten) about an hour ago

I realise this is 'Advanced DynAI' but How do I edit graph templates and colours. Maybe I'm looking in the wrong documentation but I don't see it.

[Bob Cergol]

There are two ways to do this with the "High Charts" graphs. [The tee charts can be exhaustively customized via the active-X control.]

1) You can inject javascript using the rules tab to affect the behavior and results of the chart. There's a sample somewhere on these forums. I just can't quite recall where it is -- or what I did with the copy I tried out. I'll look for it ....

2) You can use conditional formatting on the list options tab. If you specify value ranges you are defining two thresholds around which 3 different colors will result. The colors will be red, yellow and green but can be changed in the style sheet. Its pretty simple to try to see the result and there are some other recent posts here with screen shots of the results. When you use this, it also flows through to the chart and instead of auto-assigned colors, the red, yellow, green colors are applied to the rendered totals accordingly.

Bob

[robinsonky]

There are two ways to do this with the "High Charts" graphs. [The tee charts can be exhaustively customized via the active-X control.]

Where can I find the docs on this? The docs are brilliant in some places but very high level in others!

[Bob Cergol]

The active-X control for the T-Charts is a 3rd party control incorporated into Dynamic AI. All new development is going into the newer interactive charts.

I have been able to do a fair amount of customizing just by trial and error experimenting with the user-interace in the control

But you can download a user guide and tutorial for TeeChart VCL version 8 and tutorial at: http://www.steema.com/download/vcl

BTW: that simple example javascript for setting colors on the HighChart is:
Highcharts.setOptions({
colors: ['red','green','yellow']
});

Also look at this forum post: http://support.dynamicai.com/forum/viewtopic.php?f=3&t=436&p=1170&hilit=highcharts#p1170

I found a Word document I made describing some of this, I'll email you.

Bob

[robinsonky]

The active-X control for the T-Charts is a 3rd party control incorporated into Dynamic AI. All new development is going into the newer interactive charts.

I have been able to do a fair amount of customizing just by trial and error experimenting with the user-interace in the control

But you can download a user guide and tutorial for TeeChart VCL version 8 and tutorial at: http://www.steema.com/download/vcl

Do I need the Tchart application to get to the UI?

[Bob Cergol]

The Active X control is installed with Dynamic AI in the Windows system32 or SYSWOW32 folder. The file is: Teechart8.ocx .

You just need to set the "graph output" setting to "T Chart Active X" in your user profile on the account tab page. Then when you hover your mouse over the chart in a running report buttons will appear to edit, save, etc. You will have to save the modified chart "as" a new name -- and then select it as the chart to use in the report. Your modified charts will also appear "Styles / Graph Templates" on the Administration page.

On Windows 7 I found I had to change some security setting to allow it to run. I don't remember what it was but remember it was pretty obvious -- probably something like "allow active content" or "active X" etc.

Bob

[admin]

Just want to add that you also have to use Internet Explorer (since tChart editor is an activeX component)

If you use FF, chrome, safari, opera or other browsers, Tcharts renders as png.

Best regards

bo
